*Illustrations on the page were prepared in metric units. Projects ordered to the United States will be prepared in feet. Waiting time for the project may be extended by several days
Barn House S+ Premium
Size S [124 -190 m2]$ 865,00
- Usable area:150,5 m²
- Garage area:37,87 m²
- Development area:234,57 m²
- Height of the building at the ridge:6,39 m
- Roof pitch:30°
Choose a package type:
The project price includes:
PROJECTS OPTIMIZED FOR CONSTRUCTION AND ENERGY EFFICIENCY
750 $0 $
PROJECT ADAPTED FOR AIR SOURCE HEAT PUMP AND UNDERFLOOR HEATING
750 $0 $
PROJECT WITH MECHANICAL VENTILATION AND HEAT RECOVERY
HOUSE PLANS:
-
- GROUND FLOOR PLAN 150,50 m² + 37,87 m²
-
- ATTIC PLAN 53,05 m² do możliwej adaptacji
FUNCTIONAL LAYOUT:
The building has a simple and clear functional layout. In the entrance area, there is a convenient vestibule and a wardrobe connected through a utility room to the garage. From the vestibule, we enter the living area of the house, which includes a comfortable living room and a kitchen with a large island. There is a pantry next to the kitchen. In the second part of the house, there are three bedrooms and a master bedroom with a walk-in closet and a bathroom. The house has a separate toilet and two bathrooms, one of which is a private bathroom dedicated to the master bedroom (it can be converted into a shared bathroom). The utility room provides space for all necessary technical equipment, as well as a washing machine and dryer. The living room and all the bedrooms have access to a terrace and garden. The living room is additionally open to the full height, up to the roof structure. In the living room, there is the possibility of installing stairs for the adaptation of the attic for residential purposes.
Our largest S-model is a more comfortable and larger version of the Barn House S+. The Barn House S+ Premium is a simple single-story house (with the possibility of attic adaptation) with a straightforward rectangular floor plan. Even on the ground floor alone, it accommodates up to 4 bedrooms, making it suitable for large families even without attic adaptation. The functional layout is well-thought-out, as well as simple and intuitive. Similar to the previous S-type Stodoła designs, the garage is independent, allowing flexibility to forgo it, construct it at a later time, or relocate and modify its dimensions. This provides great adaptability to different land plots. The proposed building facade is modern and minimalist, featuring dark shades of graphite slate or fiber cement tiles, contrasted with the natural hue of gray wooden boards. It makes a stunning impression!
BUILDING STANDARD AND CONSTRUCTION TECHNOLOGY
The building is designed with an energy-efficient standard compliant with the 2021 Technical Conditions, including underfloor heating through an air heat pump and mechanical ventilation with heat recovery.
MASONRY WALLS: Two-layered – cellular concrete block + mineral wool, interior walls made of silicate
FAÇADE: Slate or fiber cement tiles + bleached wooden boards
CEILING: Wooden – including the roof truss (possibility of prefabrication)
STAIRS: None (possibility of installing system stairs in the case of attic adaptation) ROOF: Material analogous to the façade: slate or fiber cement tiles
ENERGY CHARACTERISTICS INDICATORS
EU=22.9 kWh/(m2·year) annual energy use indicator
EK=19.0 kWh/(m2·year) annual final energy demand indicator
EP=57.1 kWh/(m2·year) annual primary energy demand indicator
Additionally, the simple gable roof allows for the installation of a photovoltaic system with up to 51 panels, generating a power output of approximately 15 kW. The visualizations showcase 20 panels generating around 7 kW of power.
SHAPE:

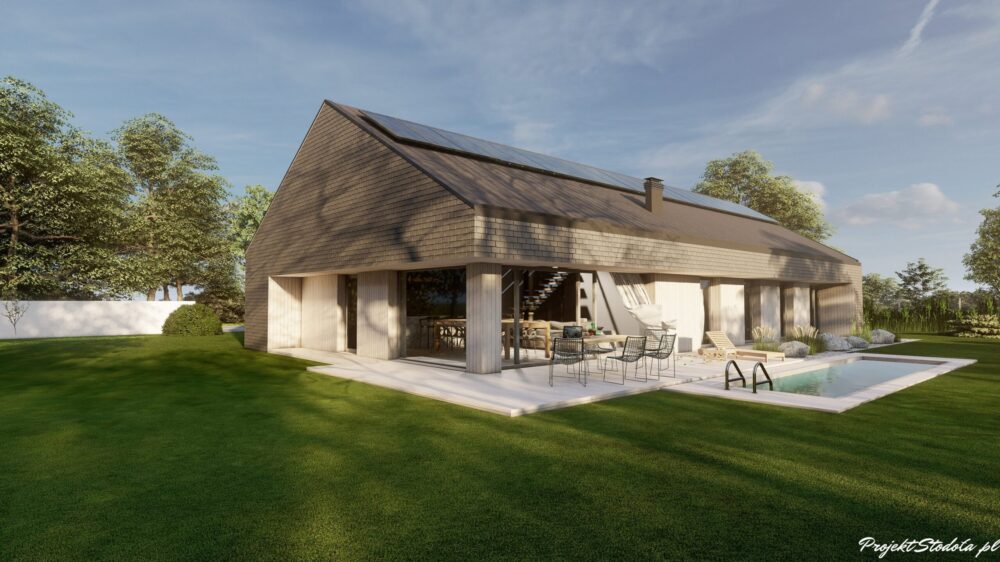

A simple, modern single-story house (with the possibility of attic adaptation), in a rectangular shape, covered with a symmetrical gable roof with a slope angle of 30° (ridge parallel to the access road). An additional garage volume is attached to the building from the entrance side (the garage volume is independent, and the building can exist without it). The building features a very straightforward structural layout based on three axes, a simple gable roof, and a wooden ceiling, making it easy and cost-effective to construct. The building facade is modern and minimalist, with a dark color palette – graphite slate or fiber cement tiles combined with the natural shade of gray wooden boards. There is the option to customize the materials to align with the local context or the investor’s individual preferences.
Urbanistically, the building is suitable for a plot with a northern entrance. There is the possibility of changing the garage’s location to fit narrow plots with eastern or western entrances, depending on the version.
MINIMUM DIMENSIONS OF THE PLOT:
The building can be situated in several variants, primarily with the entrance from the northern side (Variant 1 and Variant 2). There is the possibility of placing the garage on the side of the building and having the entrance from the east and west (Variant 3). More information about this variant can be found in Barn House S+ Long, similar in size to S+ Premium. If the garage is not included, it is possible to place the building on a smaller plot.
The drawing shows the minimum distances from the property boundary according to Polish building regulations. In your region, these distances may be different.
-
- OPTION 2 Entrance from the north, two outer walls solid without windows
-
- OPTION 1 Entrance from the north, one outer wall solid without windows
However, it is possible to request a change in technology.
If you are interested in changing technology – contact us by e-mail.
FRAME BARN HOUSE
We have the ability to easily change the construction of the house to either steel or wood frame technology.
Benefits of frame technology:
- wooden frameworks are more resistant to shocks and seismic forces than traditional masonry structures
- a more environmentally friendly solution
- shorter construction time, shorter working hours for workers
PREFABRICATED BARN HOUSE
Barn Houses Ideas collaborate with a company that specializes in manufacturing building components, like: ceilings, walls, roof, etc.- in factories and then transporting and assembling them on site.
The technology allows for a construction time reduction by half. You are able to build your barn house in 4-5 months.
Prefabricated construction is about 15-25% more expensive than comprehensive traditional construction.
What do you gain in return? Among other things:
- an ecological house made of natural materials
- quick realization of the house even in 4-5 months, and thus also immunity to unstable prices on the market
- minimal involvement in the construction – without the restriction of teams and materi
greater usable area of the building due to the smaller thickness of the walls - a house situated on a foundation slab
- guidance and advice from an experienced team
- noticeably better quality and durability of individual components.
MODULAR BARN HOUSE
If you have any additional questions or you need advice – contact us
ADD-ONS TO THE PROJECT
During the ordering process (after adding to the cart), you can choose from a variety of add-ons for the project:
Files in .dwg
- Cost $380
Project drawings in editable .dwg format.
Additional visualizations
- Cost $250
If you are considering a different material for the facade, you can order an alternative version of visualizations according to your needs. This includes 2 views – 1 from the front and 1 from the garden – with different materials in .jpg format. This service applies only to standard projects without modifications. Delivery time is up to 2.5 weeks.
In the Comments field describe the materials you would like to see in your version of the facade.
3d model in .skp
- Cost $380
Building model in editable .skp format with basic furnishings. Helpful for interior design
Custom add-ons
If you have specific requirements please contact us
Package type
Basic Package
This is the basic information used to familiarize yourself with the project and determine if it is suitable for your plot. This package is not sufficient to build a house.
The package consists of:
- Basic drawings of:
- building plans
- building sections
- Roof plan
- Elevations with description of the materials
- The most important project information
- Architectural visualisation
- Joinery schedule
Files in PDF format
If you purchase the Basic Package, you will receive a 25% discount on the Full Package, valid for 2 weeks.Full Package
This is a complete project documentation - it contains all the trade drawings needed to build our house.
The package consists of:
Basic Package(detailed drawings)+
- Drawings & Description of:
- Construction
- Sanitary Instalation
- Electrical Instalion
- Technical description of the building
Files in editable format:
- Layouts in .dwg
- 3d model in .skp
| Basic Package | Full Package | |||
| Floor plans | x | x | ||
| Sections | x | x | ||
| Elevations | x | x | ||
| Elevation Materials Schedule | x | x | ||
| Partition Types | x | x | ||
| Windows Schedule | x | x | ||
| The most important project information with basic parametrs | x | x | ||
| Roof plan | x | x | ||
| Architectural visualization | x | x | ||
| Technical description of the building | x | |||
| Sanitary Instalations - description & drawings | x | |||
| Mechanical ventilation systems plans | Plumbing plans | Central heating systems plans | x | |
| Electrical Instalations - description & drawings: | x | |||
| Plan with: switchboard, electrical sockets, lighting fixtures and switches | Electricity board scheme | Lighting protection system | x | |
| Construction description & drawings: | x | |||
| Structure plans (with reinforcement) | Foundation plan | Roof Truss Detail Plan | x | |
| Roff truss elements schedule | Reinforcing steel schedule | Construction details | x | |
| Energy performance characteristics | x | |||
| Basic layouts in .dwg | x | |||
| 3d model in .skp | x |
Plan version
Standard Plan
Mirrored Plan
Plots have different shapes and entrances from different sides. To make it easier for you to adapt our warehouse plan to your plot of land, we offer you a choice between two versions of the warehouse plan: the standard plan and the mirror plan.
The most important factor in choosing between the two is the direction of the world from which the entrance is located. This determines which version of the plan will fit the most for your plot.
In the ‘Plot’ section of the product page, we provide a detailed description of our recommended entrance location. Take a look at this information and choose the variant that best suits your plot.
In addition to the option to change the building technology and construction, described in the “Construction Options” tab for each project, it is also possible to introduce additional modifications. We handle both minor changes and more advanced ones, such as modifing the layout of rooms in the house or changing the appearance of the facade.
If you are interested or have any questions regarding this, please contact us.
Describe in an email the modifications you are interested in, and we will price them individually.
BARN HOUSES AFTER MODIFICATIONS
You can see all our project implementations here:
COMPLETED HOUSES
The Barn House Idea is not just a blog and ready-made projects; it’s a way of thinking about construction, about choices and compromises to achieve the desired goal with full satisfaction. The Barn Project is about minimalism, functionality, simplicity, and energy efficiency, all guided by construction economics.
Our Barn House M has been inhabited for 6 years now. We didn’t expect that our construction and design efforts, which we document on the blog and through social media, would create a community around this idea. It could be said that The Barn Project is more than just projects; it’s also a forum for exchanging opinions and experiences. It’s a community that you can also be a part of.
Check out the social media profiles of investors building houses according to our projects as well:
-Barn House S @jak_możesz_to_sie_nie_buduj
-Barn House S+ :
@nasza_splus
@stodola_clt
@stodola_kolo_kamienia
-Barn House S+ Premium :
@s_premium_stodola
@troche.inna.stodola
@stodola_splus_premium
@nasza_polna_stodola
@stodola_premium
@budowajakzakare
@stodola_premium_podlasem
@stodolaspluspremiumnawsi
-Barn House S+ Premium after modifications 2 @kolejna_stodola
-Barn House S+ Exclusive after modifications @w_mojej_parterowce_
-Barn House S + Long:
@stodola_wzg
@stodola.ulipy
@spluslong
@naszalongbarn
-Barn House M @nad_morze.m_stodola
-Barn House M parterowa @m_parterowa
-Barn House M-L @naszeklepisko
-Barn House M-L after modifications 2 @stodola_dziennik_budowy
-Barn House with Atrium :
@sosnowe_atrium
@projekt_stodola_z_atrium
-Barn House Optimum @iznowustodola
-Barn House Double @projektpodwojnastodola
-Barn House Smart + @moja_smart_stodola
-Barn House L Compact @nasza_stodola_l_compact
-Barn House L+ @oursecretbarn
